805,00 EUR

19 % VAT incl. excl. Shipping costs

Product no.: 51834670

Sufficient stock for approx: 12 week(s)

Downloads

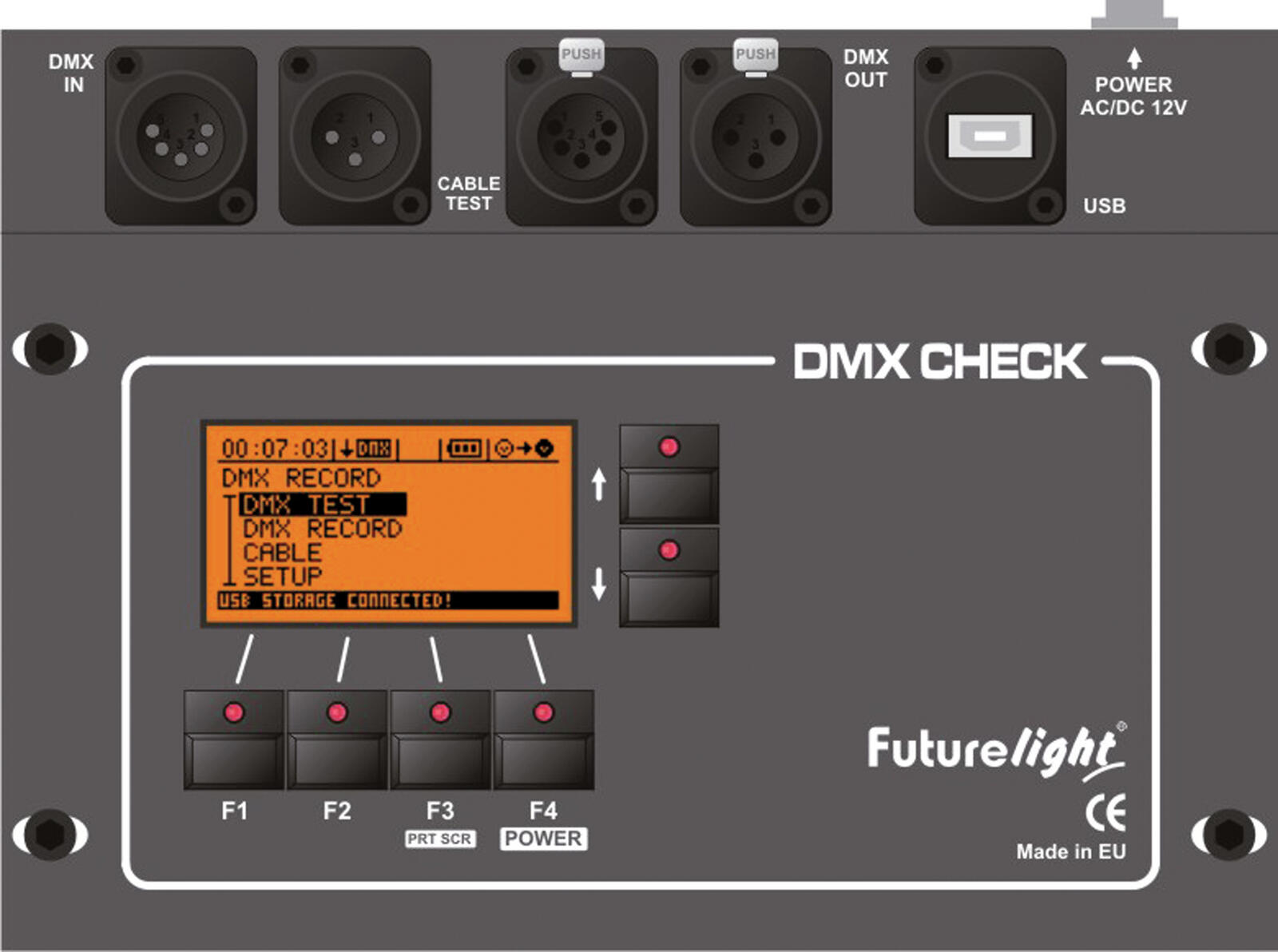

The following can be tested: DMX input and output signal, XLR cable, pin connection
Exact data analysis and comparison with DMX standard
Output of exact error descriptions
Different DMX standards can be defined (1986, 1990, A, user defined)
USB port for memory back up, loading of DMX data and software updates (for USB pendrives up to 2 GB)
DMX recorder: DMX data can be saved on USP pendrive and played back
Operates on power unit or rechargeable battery
Built-in accumulators for mains independent operation (up to 6 hours)
The necessary power adapter is included

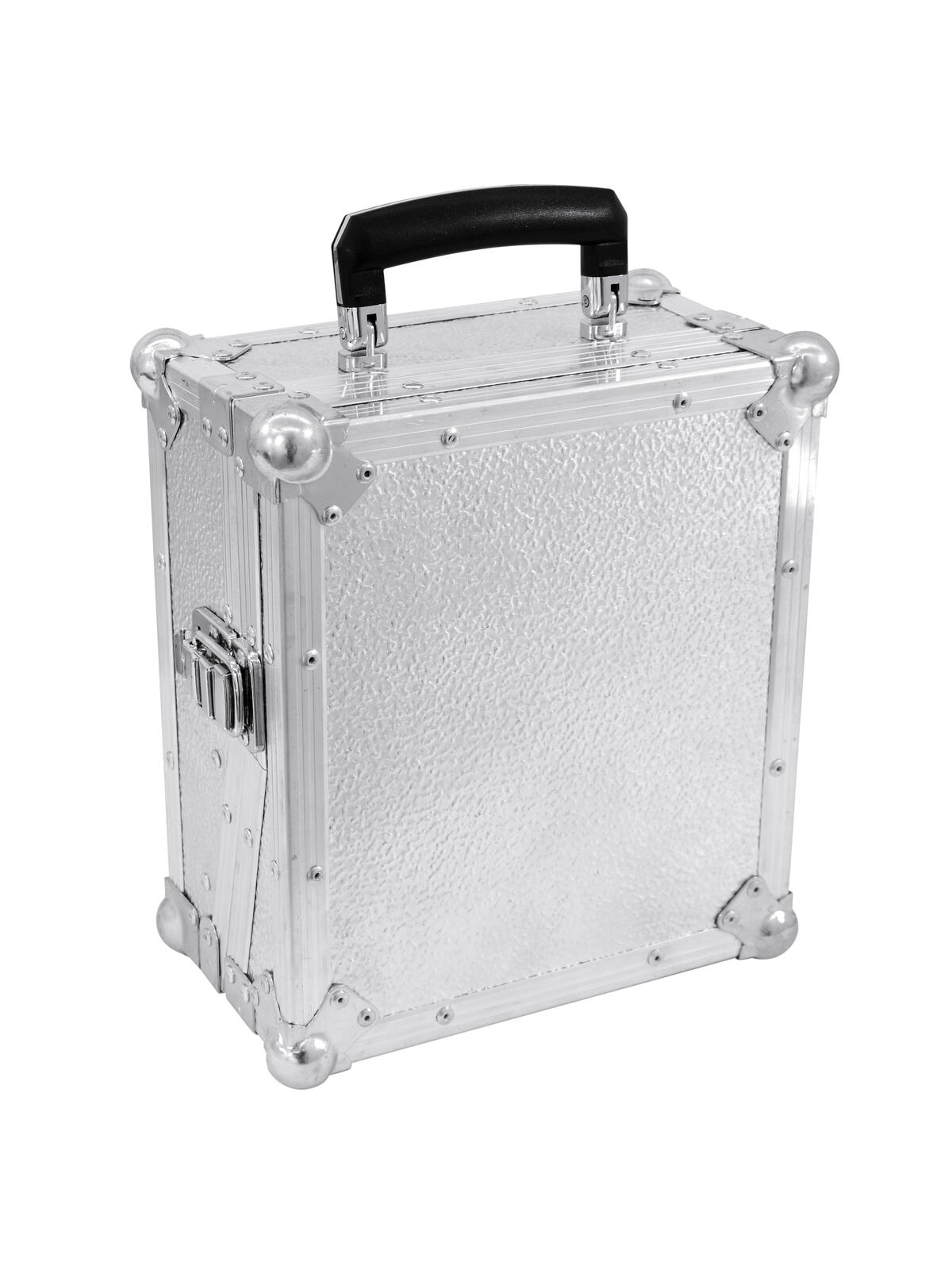

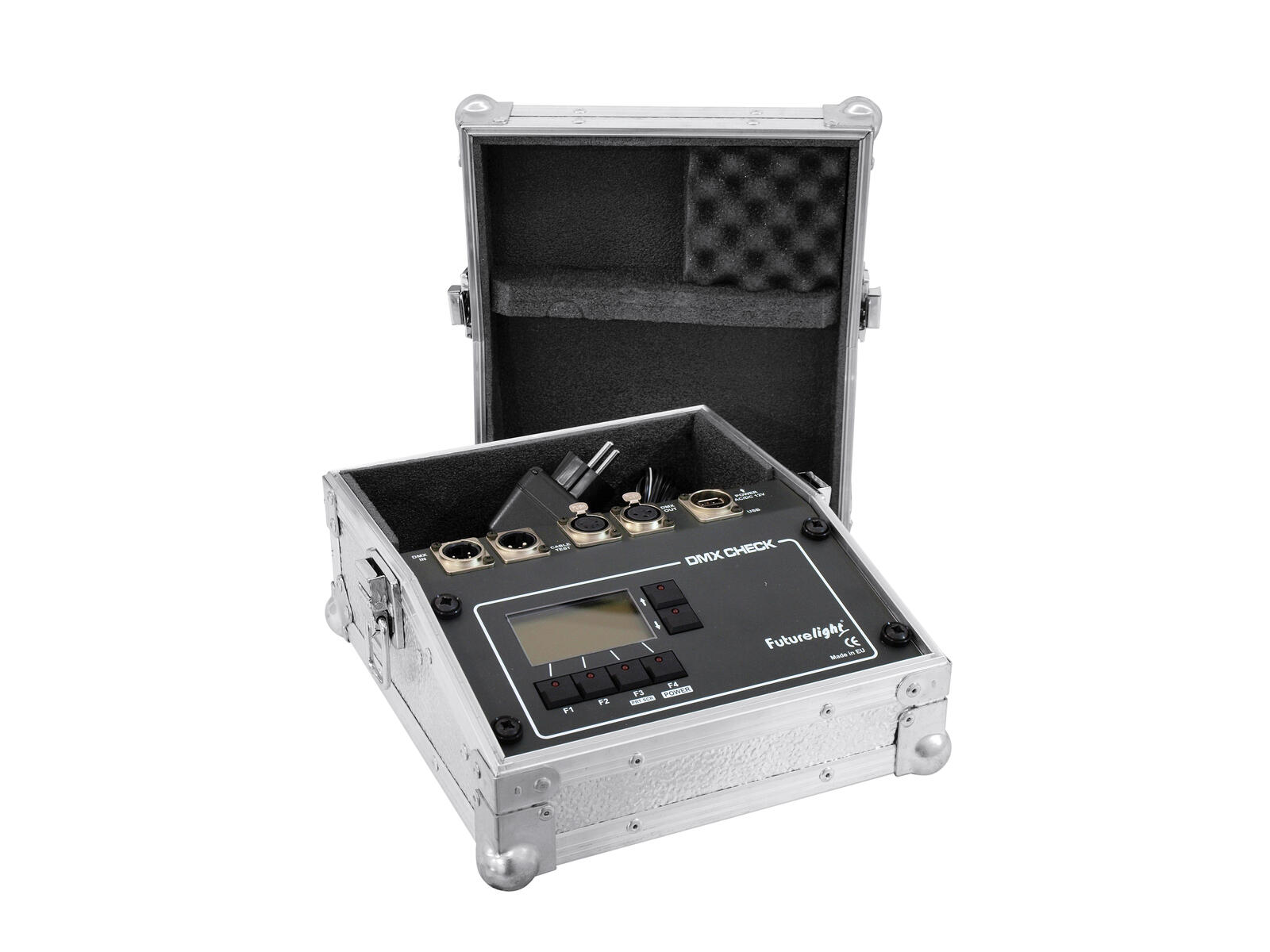

Delivery in a practical transport case

Power supply:	230 V AC, 50 Hz ~
	via 12 V DC, 1500 mA power unit included in the delivery
Power consumption:	20 W
DMX control channels:	512
DMX512 connection:	5-pin and 3-pin XLR
Accumulator capacity:	2 x 1.5 mAh, 6 hours work time with one charge
Incoming DMX signal level:	-10 / +15V, 20mV-os sensibility
USB data storage:	max. size 2 GB
DMX digital level accuracy:	200 ns
Dimensions (WxDxH):	350 x 250 x 130 mm
Weight:	4 kg
